S BASE

Innovative quick-click
flat-roof PV racking

The unique base-plate mount for flat roofs is
economical, durable and incredibly easy to install.
Brackets click in place. Wide-footprint
reduces point loads and extends longevity.

Simple. Strong. Fast.

Covers all the bases

Fast, simple installation with fewer components
and flexible mounting options.

Easy to install

Quick-click brackets snap in place for rapid,
one-tool installation.

Streamlined design

Fewer SKUs, lightweight, nested shipping,
racking coverage up to 70kW per pallet of
bases, depending on module wattage.

Flexible use

Multiple tilt, orientation and anchoring
options to meet diverse project demands.

Effortless to install

Configure the S-Base system to match your specific
project requirements with multiple tilt, orientation,
and mounting options.

Core structural components

3 primary elements, with wind deflectors added
where required for performance and stability.

Quick-click bracket assembly

Components snap into place without extra
adjustments, easy for solo installation.

Integrated bonding

Built-in bonding eliminates additional
grounding steps.

Cable management

Clips and ties keep wiring organized and secure.

Single-tool installation

Complete the entire installation using just
one tool.

Setup flexibility

Flexible setup options. Designed
to adapt to different project
requirements.

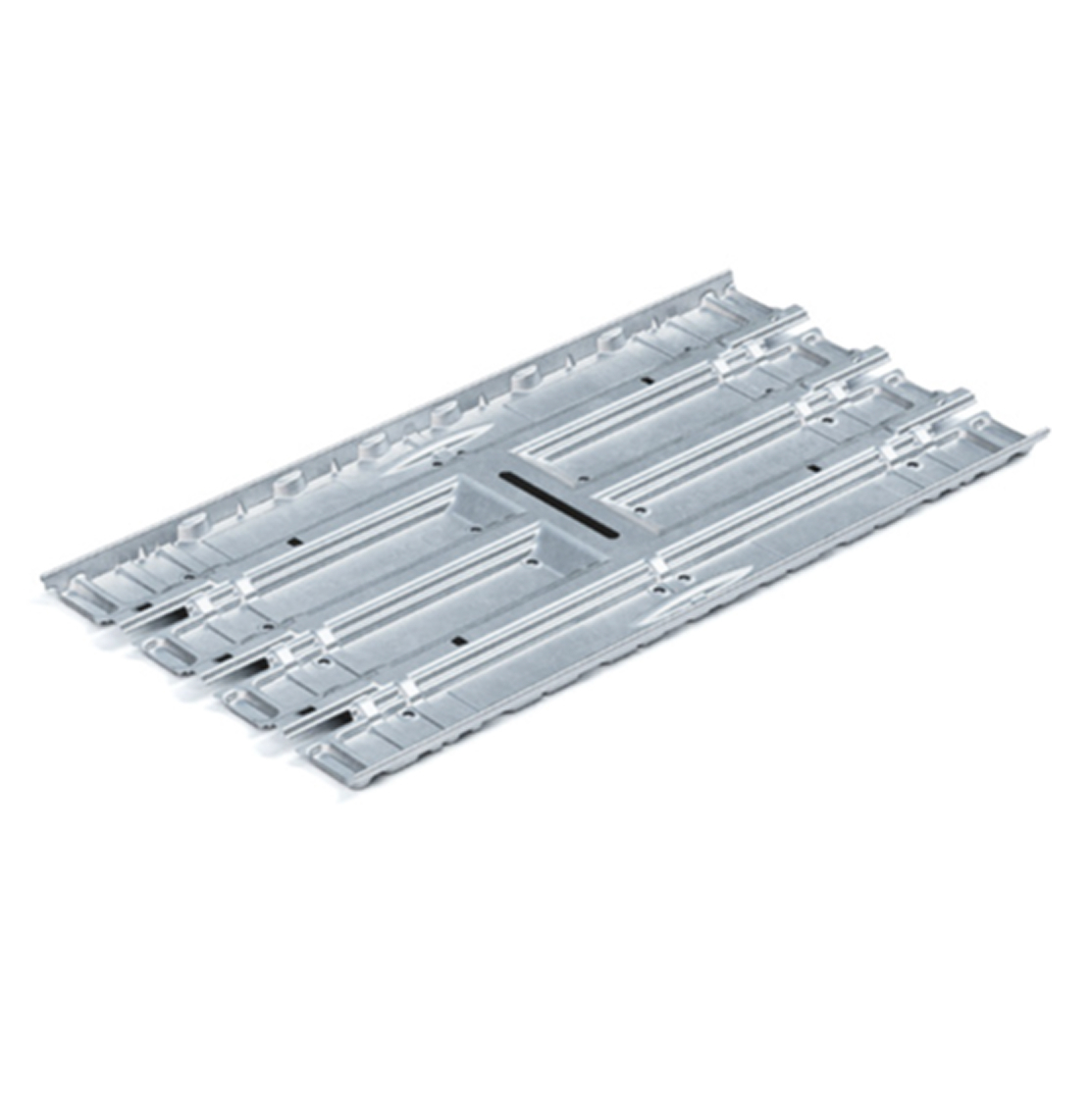

01 / The base plate

The patent-pending base plate stacks easily for
transport and is lightweight yet strong enough
to support ballast or anchored connections.

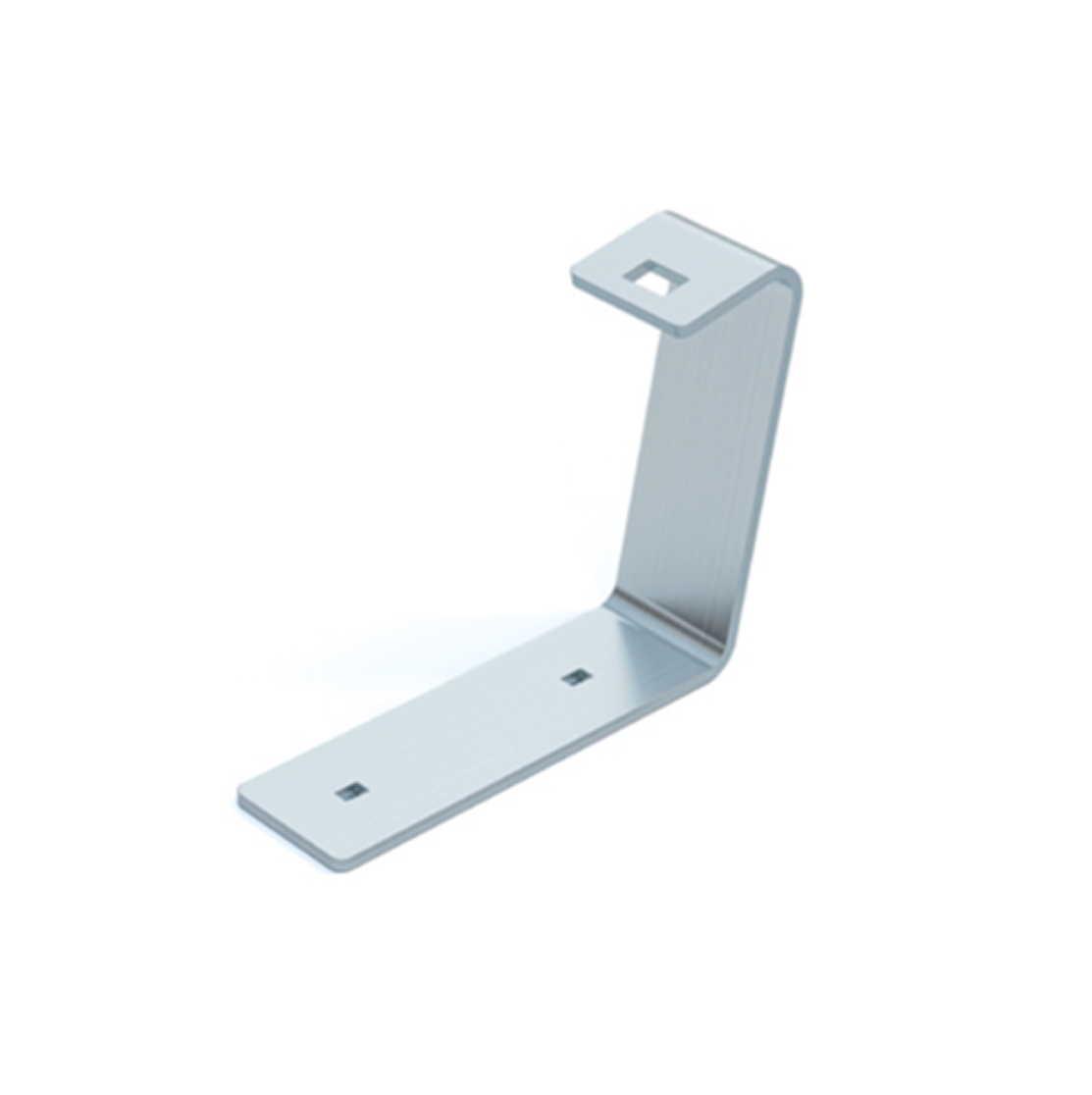

02 / The bracket

100% aluminum brackets offer
corrosion resistance, durability,
and thermal flexibility.

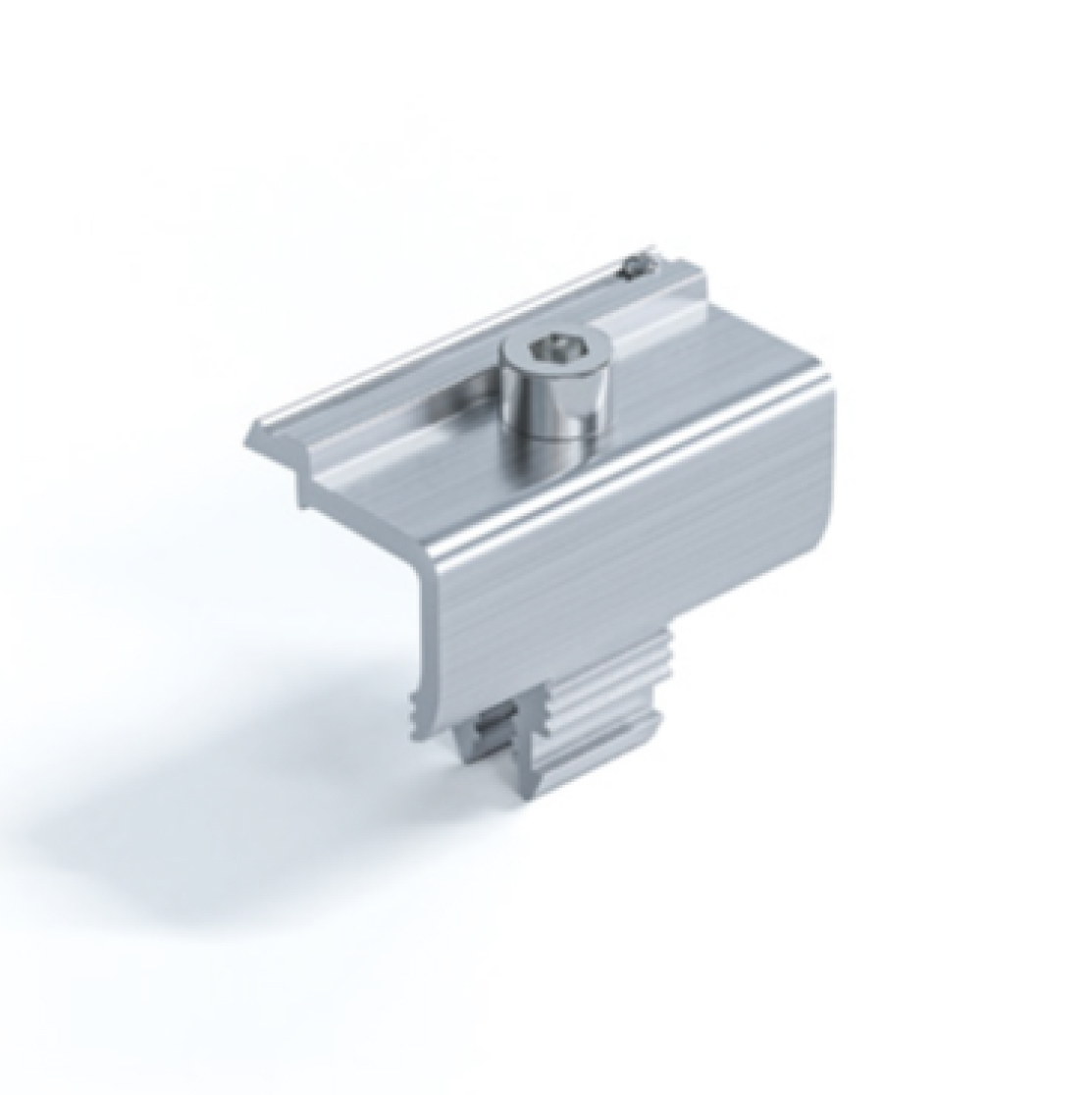

03 / The clamp

Click in and tighten to the PV
module frame using one tool for
the entire S Base structure.

Technical specifications

Industry-certified ground-mount system built
for performance and reliability.

DOWNLOAD DATASHEET

Powerful flexibility

5° / 10°

Quick-click speed

Click-in-place brackets and clamps

Code compliant

ASCE 7-10, 7-16, 7-22

Max efficiency

Fewer SKUs and lightweight

Streamlined design

3 primary structural elements

Warranty

25-year product warranty
