Better at Every Step
Designed with contractors, Pegasus Rail makes every aspect of solar installation better. From the warehouse to the jobsite, from the box through a lifetime of service: Simple. Fast. Durable.
The Multi-Clamp
One clamp for 30-40mm panels, mids and ends.
- Clicks and stays in place – even on 90 degree roofs
- Won’t turn panels out of alignment when tightening
- No interference with wires
No-Tool Splice
Connect rail instantly. Without tools or limits.
- Structural anywhere in rail span
- Bonds automatically
- No interference with mounts or clamps
- No interference with wires

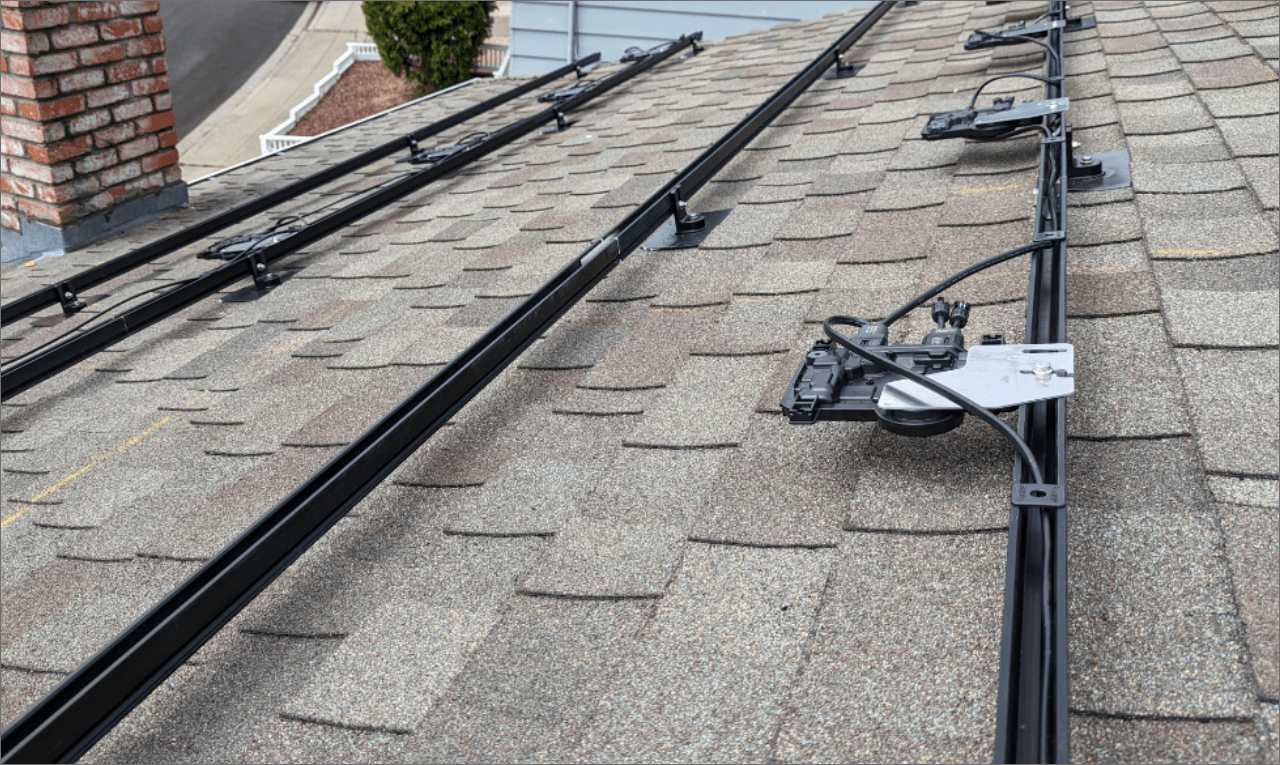

Lifetime Wire Management
Zip-tie free. A complete system for lifetime solutions.
- Wire-tray: Holds MC4 connectors, PV wire and trunk cable
- Wire clip: Snaps in place, won’t slip
- Cable grip: Stainless steel holds trunk cable and homeruns tight
Instant Bonding
Take charge. Bond arrays in a flash.
- North-South Bonding Jumper clicks in place
- Bonds panels row-to-row, replacing copper wire
- Enables one ground lug per array

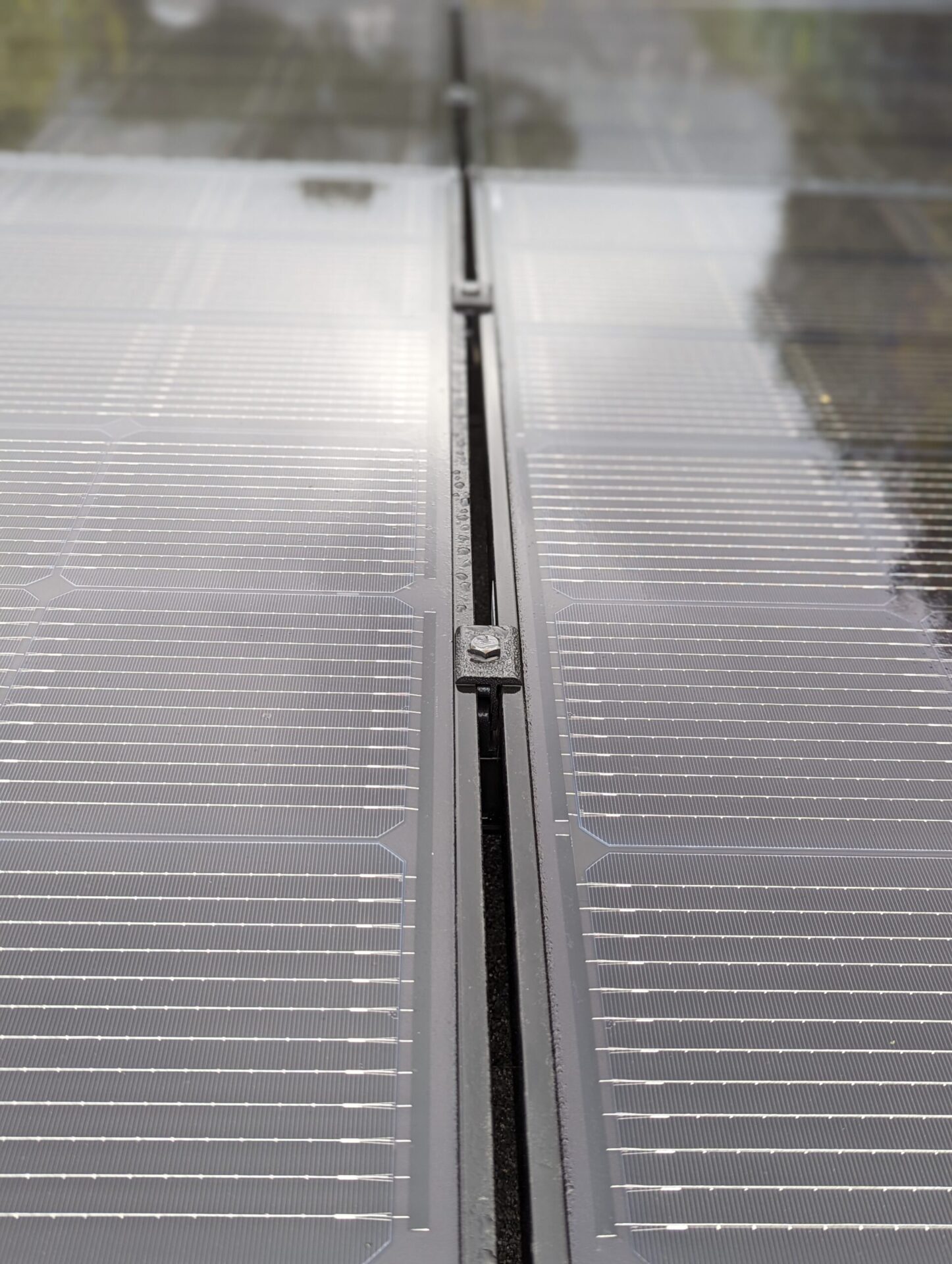

Elevated Aesthetics
Thinnest module gap in the industry.
- All-black finish

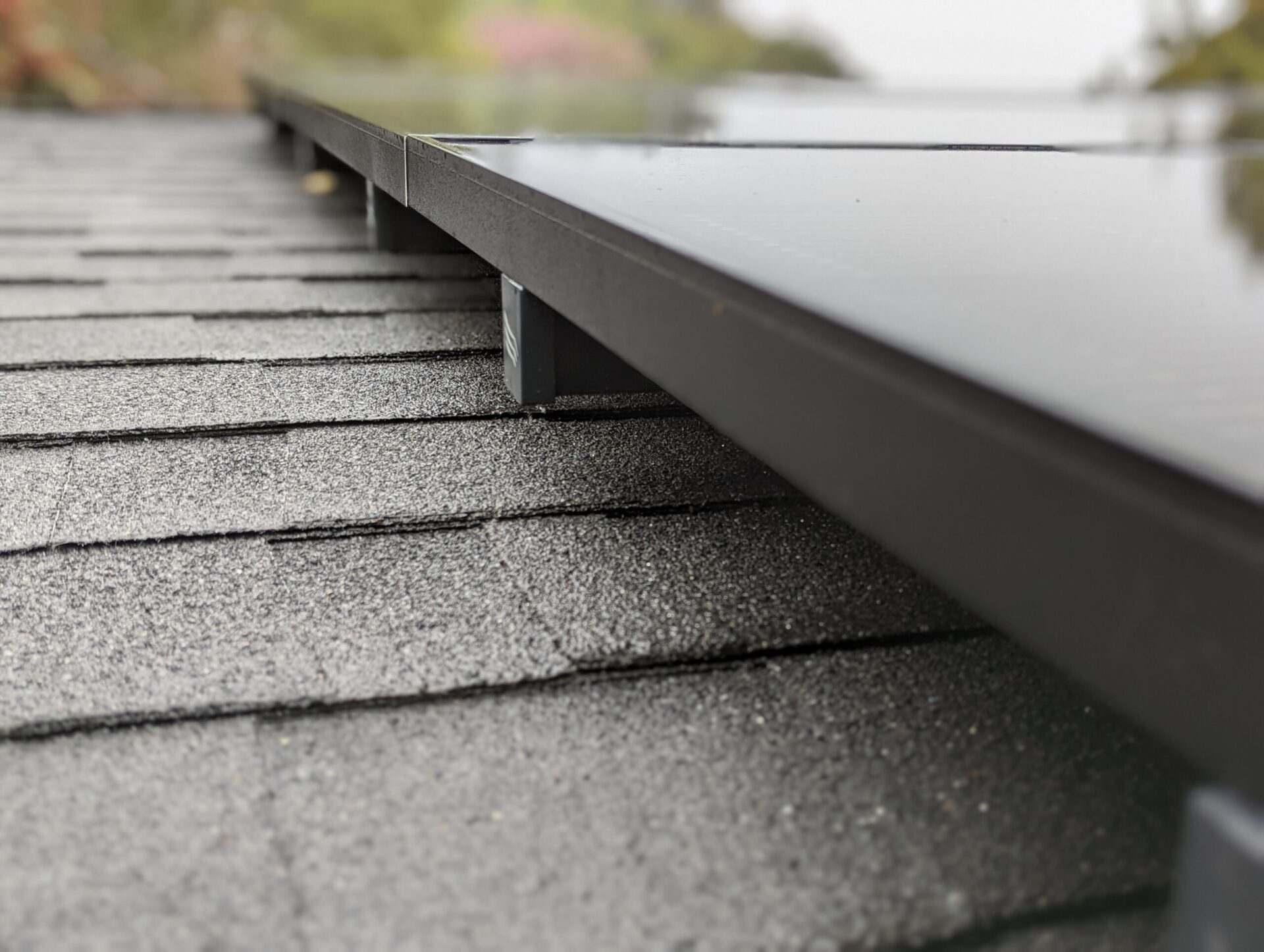

- Hidden-end clamp: Premium appearance, one-hand installation
- End cap: Covers rail cuts; drains water
Roof Type
Any
Load Certifications
PE certified to ASCE 7-16
Bonding & Grounding Certifications
UL2703, Edition 1 listed as reusable
LTR-AE-001-2012
Fire Rating
Class A with Type 1, 2, 29, & 30 PV modules
on any slope roof
Compatible Mounts
Most
Compatible PV Modules
Most PV modules with 30 to 40 mm frames
Assembly Tools
1/2″ deep socket for all components
Rail Lengths and Finishes
7′ and 14′ in Mill and Black
Splice Type
Structural and Bonding, no-tool
Bonding
Integrated Bonding, including row-to-row
Ground Lug
Conforms to UL467; compatible with 6 & 8 gauge bare wire copper
Wire Management
Integrated wire tray in rail, requires no zip-ties
