FX

Light. Simple. Durable.

Superior mounting for
commercial flat roofs

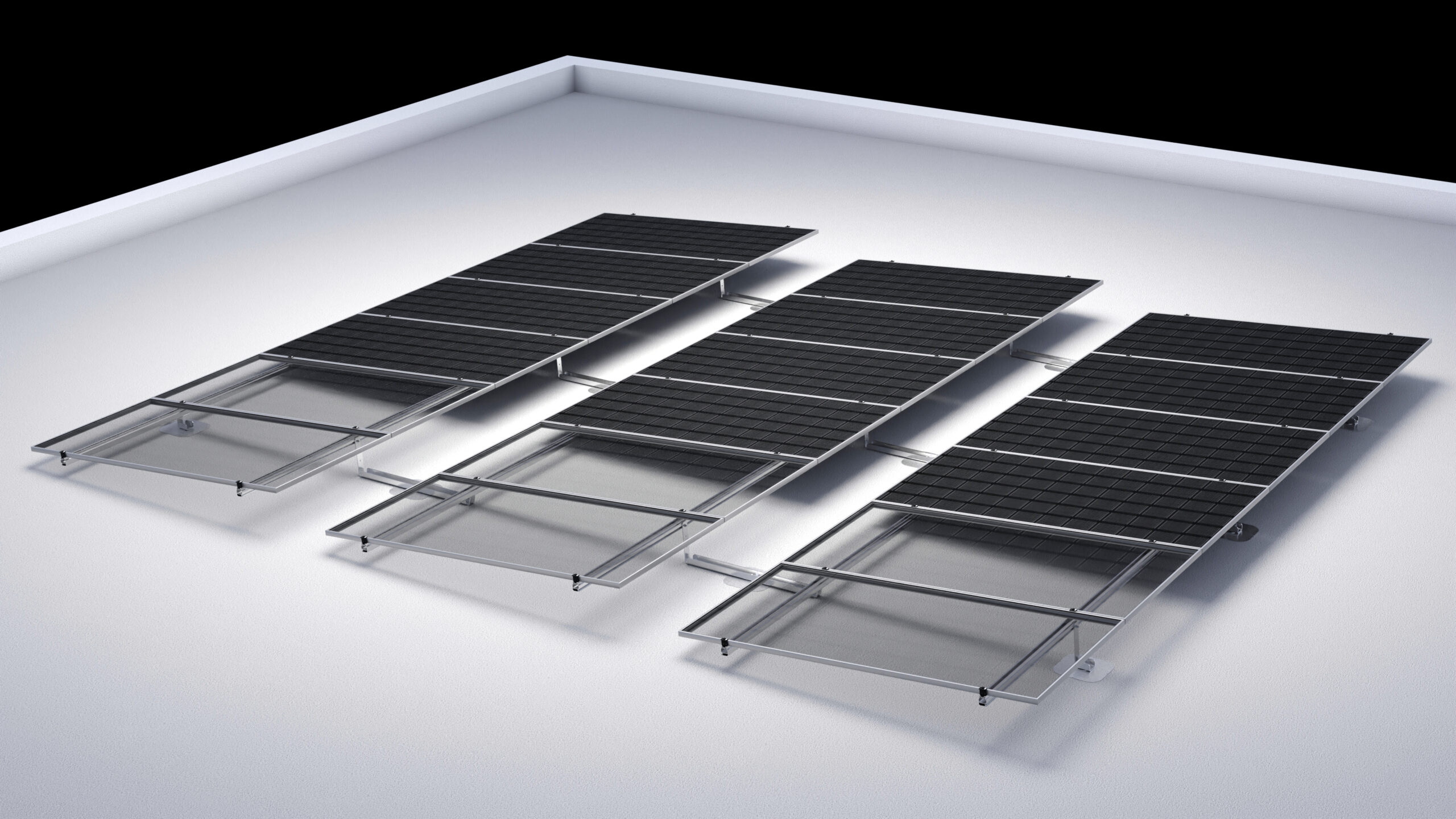

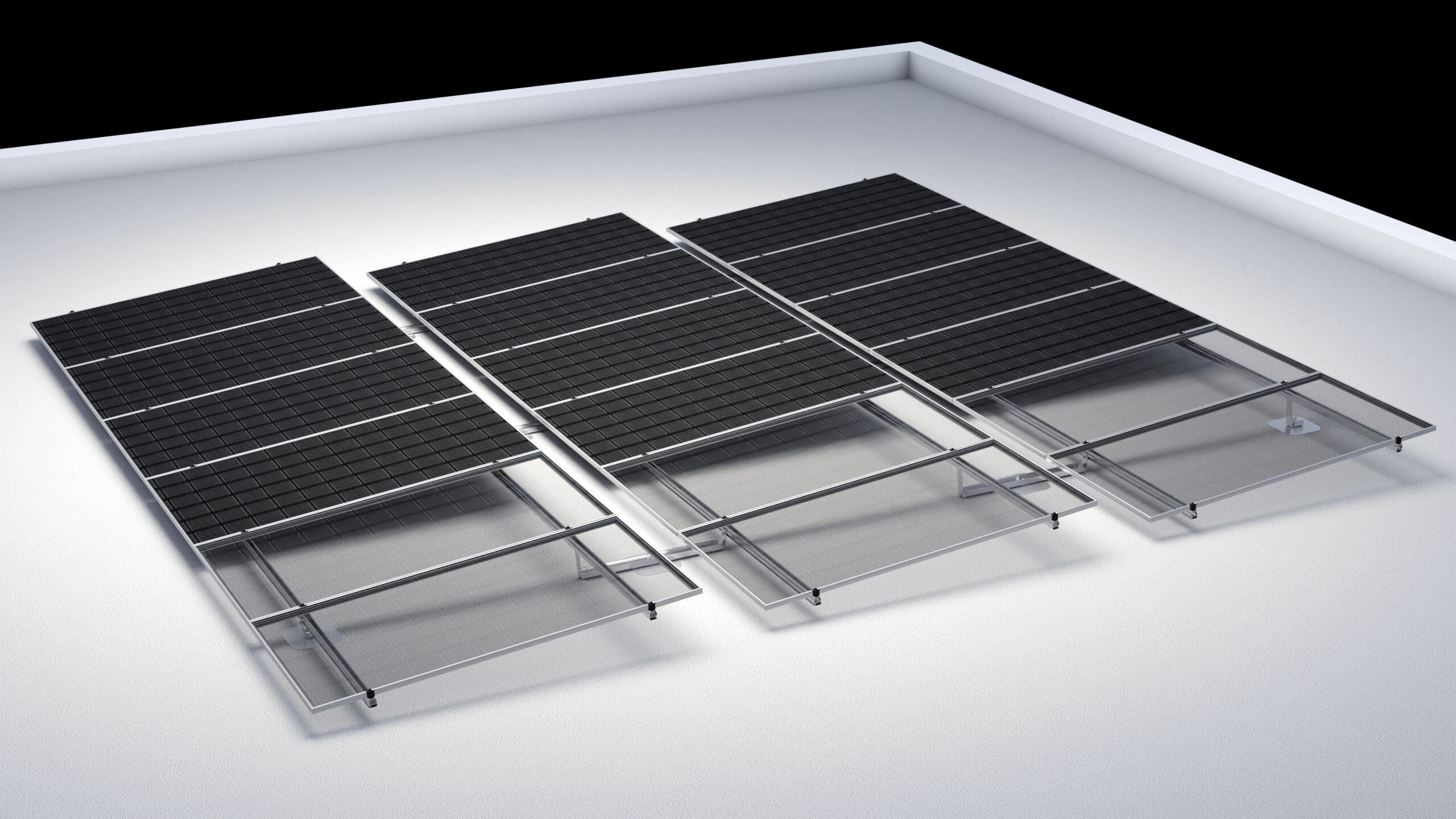

The Pegasus FX fixed-tilt mounting system provides an ultra-lightweight,
durable and trouble
-free solution for commercial flat-roof applications.

FX LOGO White
POWERFUL FEATURES

Gentle on structures,
strong on winds

Icon 2
Intra-row mounts
Up to 10ft spans and shared intra-row mounts
reduces roof anchors by as much as 40% compared
to competing products
Icon 2
Lightweight
As low as 2.2 psf (including modules, inverters, racking and attachments)
Icon 2
Extreme Wind Resistance
Rated to 180 MPH wind

Reduced roof penetrations

64% reduction
Icon 2

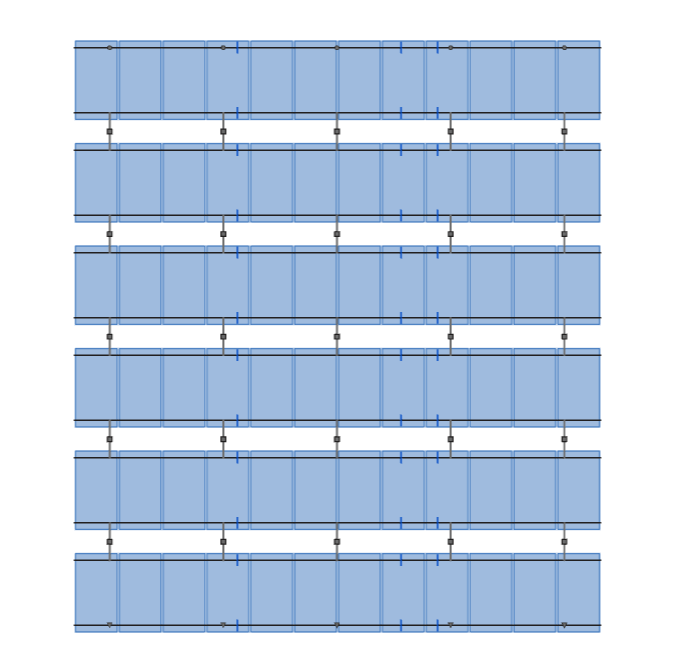

Traditional anchored South-tilt:
96 anchors
Icon 2

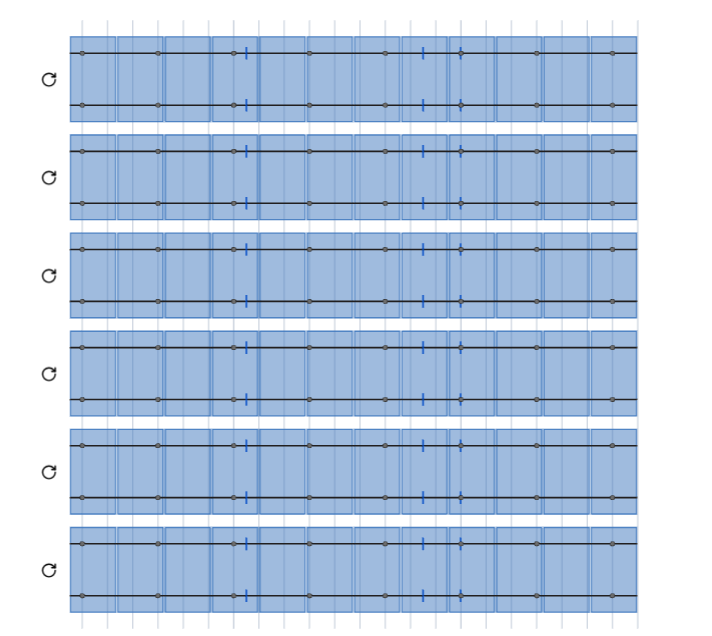

FX South-tilt:
35 anchors
FX LOGO PRINT 1

Fast and flexible

Configure to what works best on your project: Fixed-South,
Fixed-East/West, Fixed-Flush... FX (ergo the name).
Suitable for TPO, PVC and concrete roofs.
Icon 1
Fixed-East/West
Icon 1
Fixed-Flush
Icon 1
Fixed-South

Secure wire
management

Rails and spanners function as wire trays.
Protects and secures wire throughout the array.
Eliminates loose or dangling wire.
UL3741 Certified.
strength and Durability, Backed by a 25-Year warranty

Built to last

Icon 1
Positive attachment
Icon 2
Rated for up to 180 MPH
winds
Icon 3
Up to 50 psf snow loads
Icon 4
25-year warranty
Visual
AVAILABLE IN

Domestic content

Domestic content racking from Pegasus can
contribute to an additional 10% tax credit under the Inflation Reduction Act.*
Talk to your Lease/PPA provider or tax advisor to determine if your
project qualifies for the domestic content adder [DCA].
* For informational purposes only. Pegasus does not provide tax, legal or accounting advice.
Build layouts in
Logo
Build smarter layouts
Quickly design layouts — including complex layouts with mixed-orientation panels, roof obstructions and multiple arrays — optimized for your project conditions.
Reduce wasted time and materials
Our layout engine automatically calculates rail lengths, splices, and attachment points to minimize scrap and improve efficiency.
Unlock insights with analytics
See estimated savings in materials, roof penetrations, and costs in real time — giving you the data to compare options and make confident decisions.
Layouts
FX LOGO PRINT 1

Technical specifications

SPECIFICATIONS
FX South
FX E-W
FX Flush
Configurations
South Tilt
East-West Tilt
Flush
Module Tilt Angle
Roof Slope
0º to 7º
Wind Speed
Up to 180 MPH
Snow Load
Up to 50 psf
Module Orientation
Optimized for portrait
PSF (Roof Load)
As low as 2.2 psf
Height Above Roof
Minimum 6”
Roof Anchor
3rd Party
Certifications
UL2703, UL3741, LTR-AE-001-2012; ASCE 7-16 & 7-22
Compatible Rail
Pegasus Max Rail
