Neat and Tidy Conduit Runs and J-Box Installs

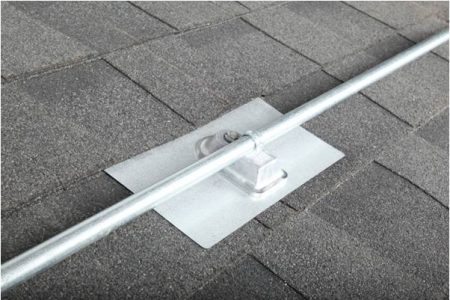

Comp Accessory Mount

Comp Accessory Mount provides fast and neat installation of electrical and mechanical components.

Supports up to 1 inch conduit or Pegasus’ J-Box Wing (below). Installs with included ¼” SS lag.

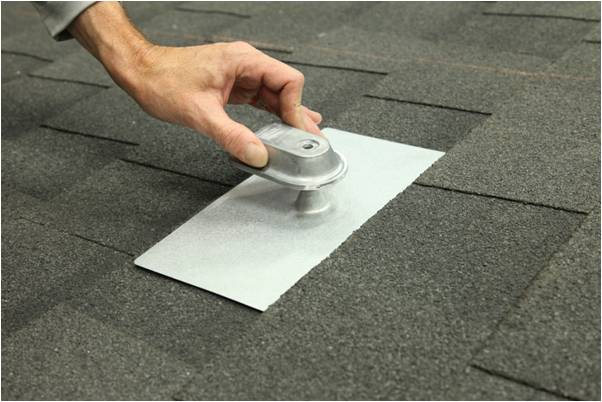

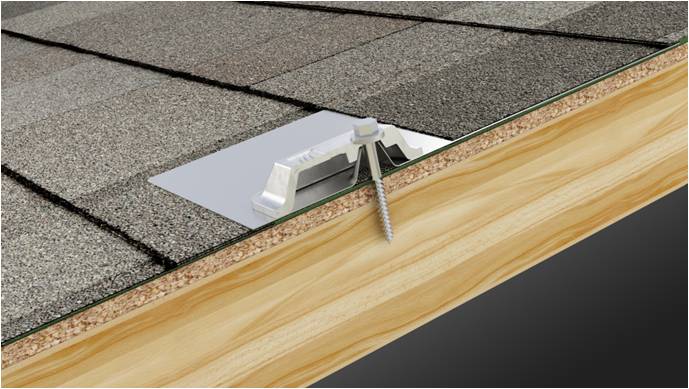

The elevated water seal prevents water run-off from bombarding the roof penetration, improving lifetime waterproofness. The simple, solid aluminum block fits over Pegasus’ one-piece elevated cone flashing

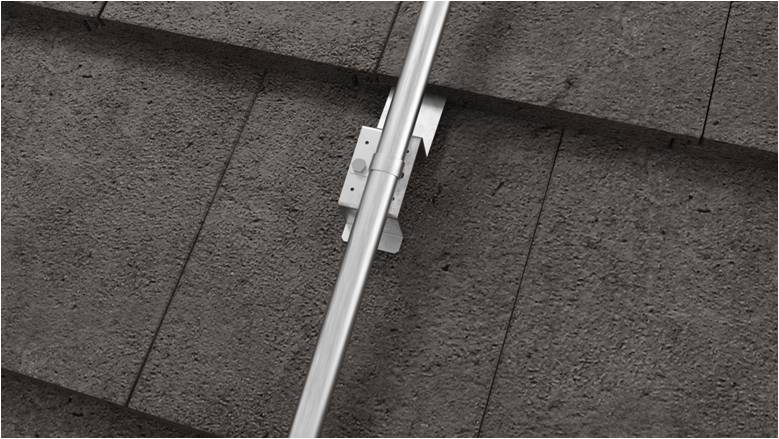

Tile Accessory Mount

Tile Support quickly clips onto backside of roofing tiles.

Pre-punched holes allow easy attachment of conduit strap or Pegasus’ J-Box Wing (below).

Installs with included ¼” SS hardware.

Increased width allows conduit runs at any angle across the roof plane.

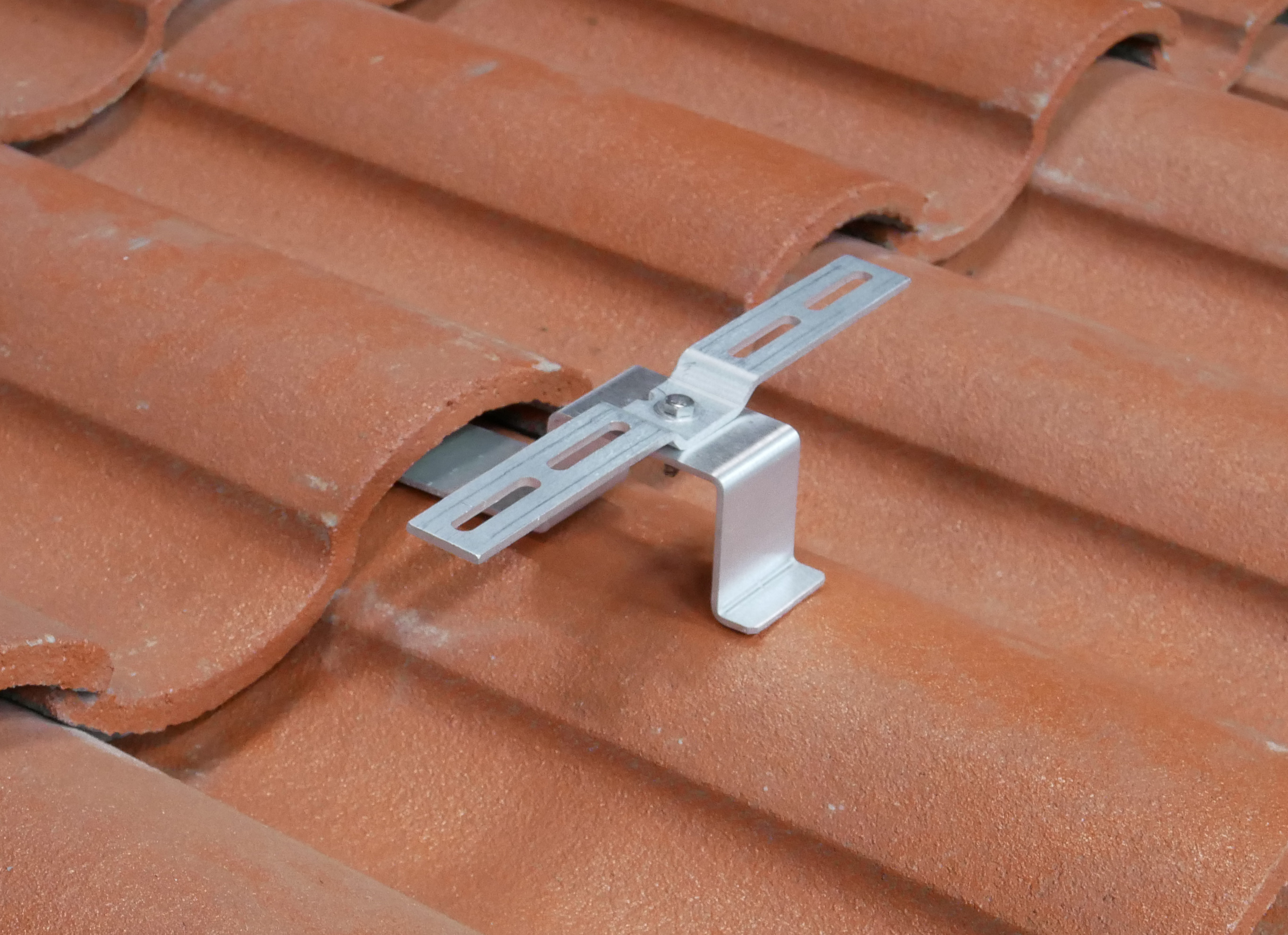

J-box Bracket

The J-Box Wing attaches to Pegasus’ Comp Support Block or Tile Support. Fits a wide variety of junction boxes with the slotted tabs.

Accessory Mount Installation Training

Technical Specifications
  • Application Conduit runs, Junction Boxes
  • Seal Height (Comp only) 0.7″
  • Finish Mill
  • Construction Aluminum
  • Flashing Construction Single-formed Galvalume Plus
  • Conduit Sizes Up to 1"
  • Installation Hardware 1/4" SS lags or mounting bolt
  • Warranty 25 years
